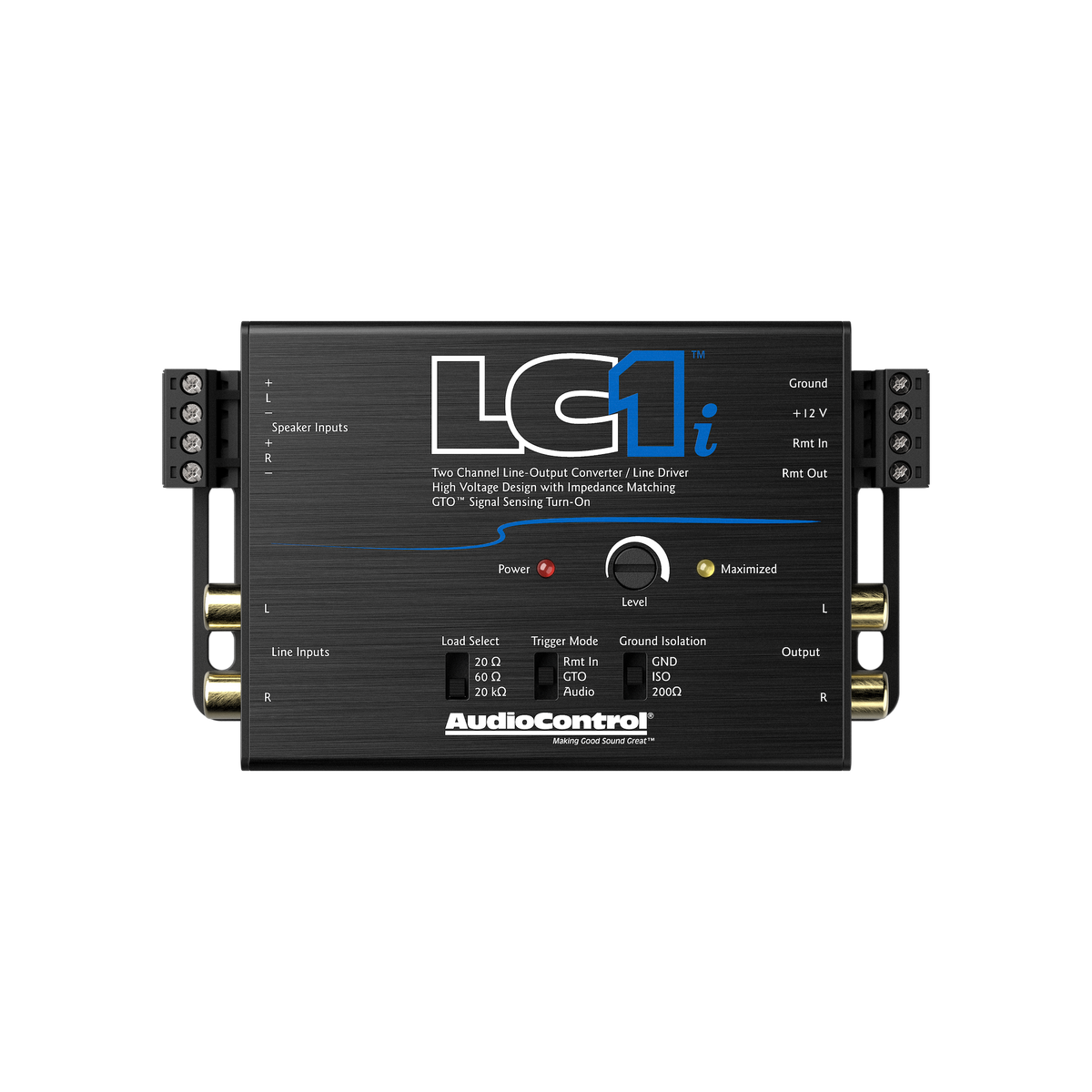

AudioControl 2-Channel LOC (No ACR Control Port) — LC1i

AudioControl

AudioControl 2-Channel LOC (No ACR Control Port) — LC1i

SKU ACO LC1i

Price: $74.99

How our shipping works

Most items are prepared for shipment within 3–4 business days. Carrier delivery time is additional.

Some special-order items take longer; contact us for an estimate.

Your order is checked before it ships.

Details & specs

AudioControl 2-Channel LOC (No ACR Control Port)

Model

LC1i

Specifications

SPEAKER LEVEL INPUT 1 (2 channels)
MAXIMUM SPEAKER LEVEL INPUT 40 Vrms / 400 W (20kΩ setting)
SPEAKER LEVEL INPUT IMPEDANCE (SELECTABLE) 20Ω, 60Ω, 20kΩ
LINE LEVEL INPUT 1 (2 channels)
LINE LEVEL INPUT IMPEDANCE 7kΩ
PREAMP OUTPUTS 1 (2 channels)
MAXIMUM OUTPUT LEVEL 9.5Vrms/13V peak
OUTPUT GAIN +/- 12 dB
OUTPUT IMPEDANCE 150Ω
TOTAL HARMONIC DISTORTION 0.01%
SIGNAL TO NOISE >110 dB
FREQUENCY RESPONSE 20 Hz – 50 kHz ±1 dB
CURRENT DRAW 120 mA
RECOMMENDED FUSE RATING 1 A
