AudioControl

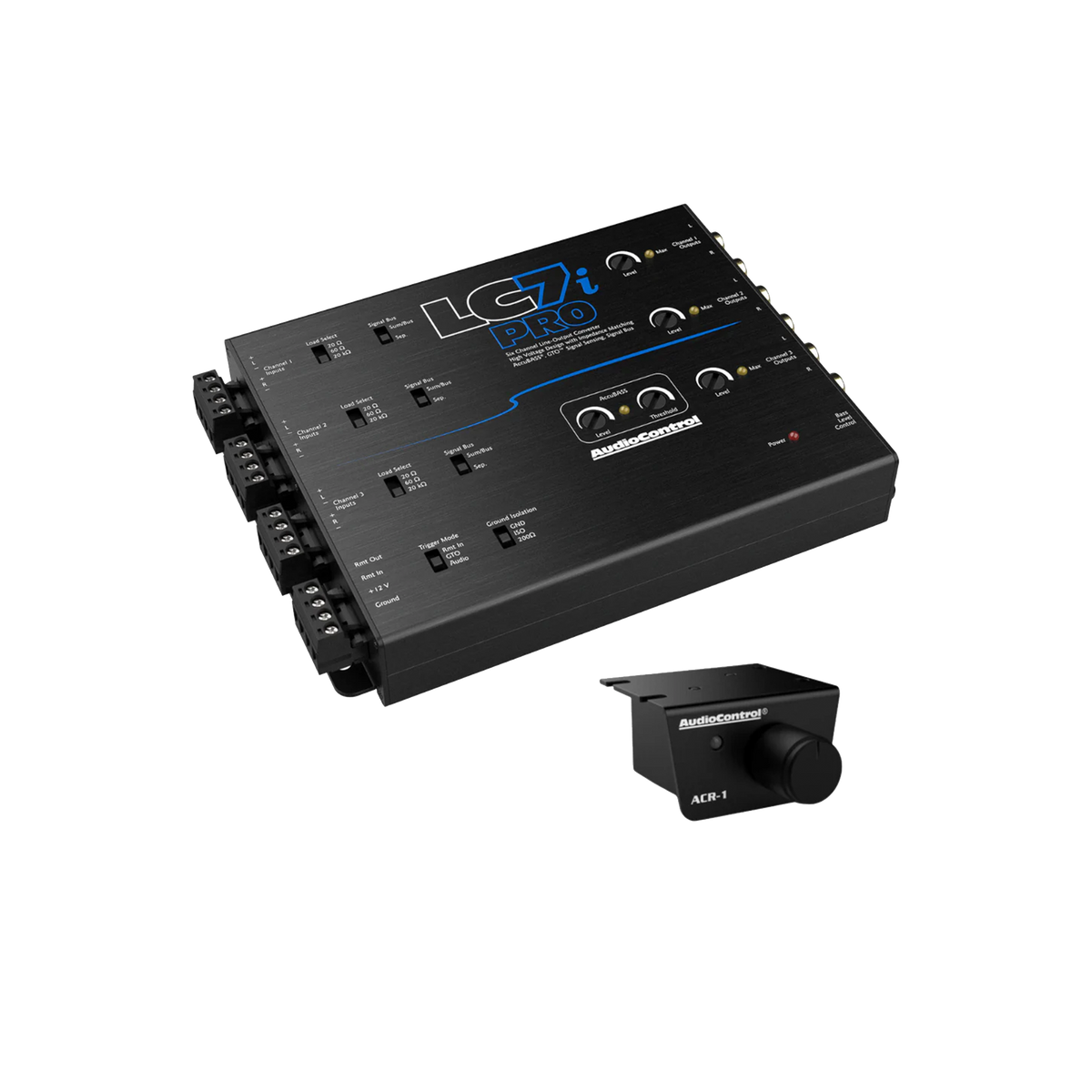

AudioControl 6-Ch In/Out Line Output Converter — LC7i PRO
SKU ACO LC7i PRO
How our shipping works
Most items are prepared for shipment within 3–4 business days. Carrier delivery time is additional.
Some special-order items take longer; contact us for an estimate.
Your order is checked before it ships.
Details & specs
AudioControl LC7i PRO six-channel line output converter for integrating aftermarket amplifiers with factory audio systems. It accepts up to six speaker-level channels and provides six preamp output channels, including dedicated bass outputs. AccuBASS processing helps restore bass roll-off, and included ACR-1 remote provides dash-mounted level control.
Specifications
- Speaker-level inputs: 3 inputs / 6 channels
- Maximum speaker input: 40Vrms / 400W at 20kΩ setting
- Selectable input impedance: 20Ω, 60Ω or 20kΩ
- Preamp outputs: 6 channels (4 main, 2 bass)
- Maximum output: 9.5Vrms / 13V peak
- Output gain: ±15dB
- Output impedance: 150Ω
- Total harmonic distortion: 0.01%
- Signal-to-noise ratio: >124dB
- Frequency response: 20Hz–20kHz
- Current draw: 330mA
- Recommended fuse: 2A
- Dimensions: 7 x 5.1 x 1.14 inches, including speaker connectors
- Weight: 1.15 lb
Features
- AccuBASS bass restoration
- Fixed and variable output level controls
- Selectable load, ground isolation and GTO/audio/12V remote turn-on options
- ACR-1 remote, 20-foot phone cable, speaker and power connectors included
Model
LC7i PRO
