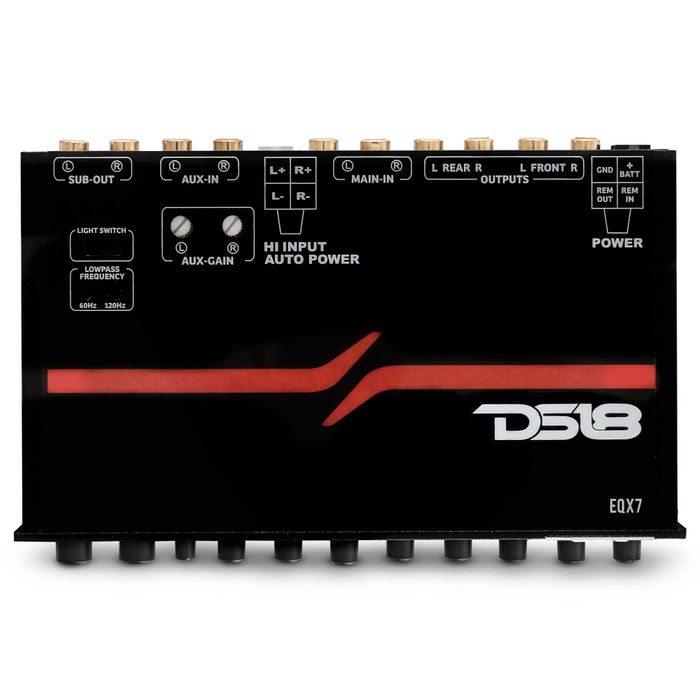

DS18 High Volt 7-Band Equalizer, High Level Input, Auto Turn On — EQX7

DS18

DS18 High Volt 7-Band Equalizer, High Level Input, Auto Turn On — EQX7

SKU DS1 EQX7

Price: $89.95

How our shipping works

Most items are prepared for shipment within 3–4 business days. Carrier delivery time is additional.

Some special-order items take longer; contact us for an estimate.

Your order is checked before it ships.

Details & specs

Description

  • 1/2 DIN 7 Band Graphic Equalizer
  • Max Output: 8 Volts
  • Subwoofer Level Control
  • Fader Control L/R
  • High Level & AUX Inputs
  • Master Volume Control

Model

EQX7

Specifications

  • Seven-band graphic stereo equalizer with high-level input and automatic turn-on
  • Center frequencies: 50, 125, 320, 750 Hz, 2.2, 6 and 16 kHz; boost/cut up to 12 dB (15 dB at subwoofer frequency)
  • Subwoofer output with level control; selectable sub crossover at 60/120 Hz; 12 dB/octave slope
  • Signal-to-noise ratio: 100 dB; THD: 0.005%; input sensitivity: 50 mV–3 V; maximum output: 8 V
  • Frequency response: 10 Hz–30 kHz; operating voltage: 11–15 V; dimensions: 7 × 4.4 × 1.18 in
  • RCA main and auxiliary inputs; speaker-level input and auto turn-on; metal/aluminum housing.
