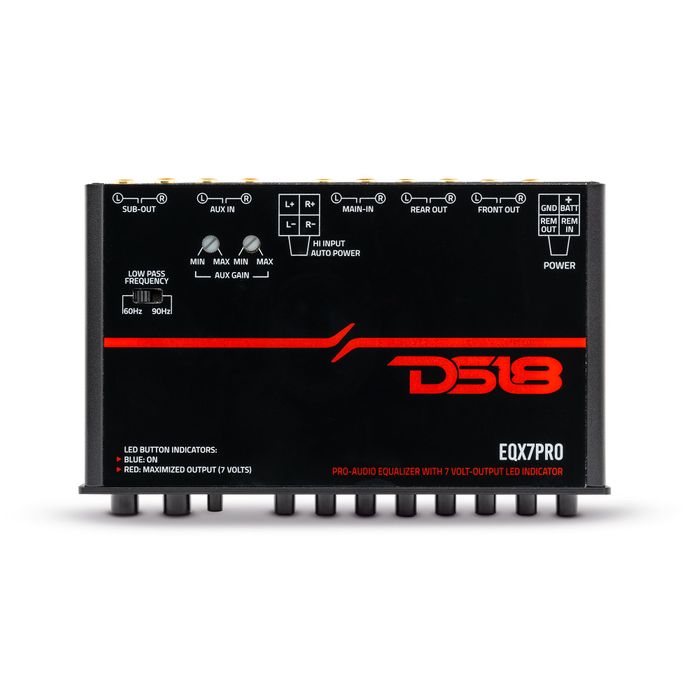

DS18 High Volt 7-Band Equalizer, High Level Input, Auto Turn On And High Volt, LED Clipping Indicator — EQX7PRO
SKU DS1 EQX7PRO
Price:
$114.95
How our shipping works
Most items are prepared for shipment within 3–4 business days. Carrier delivery time is additional.
Some special-order items take longer; contact us for an estimate.
Your order is checked before it ships.
Details & specs
Description
DS18 EQX7PRO is a 1/2-DIN seven-band graphic equalizer with main and auxiliary RCA inputs, speaker-level input, signal-sensing turn-on, master volume, fader, subwoofer level control and a dedicated subwoofer output.
Specifications
- Equalizer center frequencies: 50, 125, 320, 750 Hz, 2.2, 6 and 16 kHz
- Boost/cut: ±12 dB; subwoofer frequency band: ±15 dB
- Subwoofer low-pass crossover: selectable 60 or 120 Hz, 12 dB/octave
- Frequency response: 10 Hz–30 kHz; total harmonic distortion: 0.005%
- Signal-to-noise ratio: 100 dB; stereo separation: 82 dB at 1 kHz
- Input sensitivity: 50 mV–3 V; input impedance: 20 kΩ
- Maximum output voltage: 8 V; output impedance: 2 kΩ
- Operating voltage: 11–15 V; subwoofer output: 9 V
- RCA inputs and outputs are gold-plated; aluminum housing
- Blue backlit controls with red 7 V output indicator; remote turn-on input and output
- Dimensions: 7 × 4.4 × 1.18 in (178 × 112 × 30 mm)
Model
EQX7PRO
