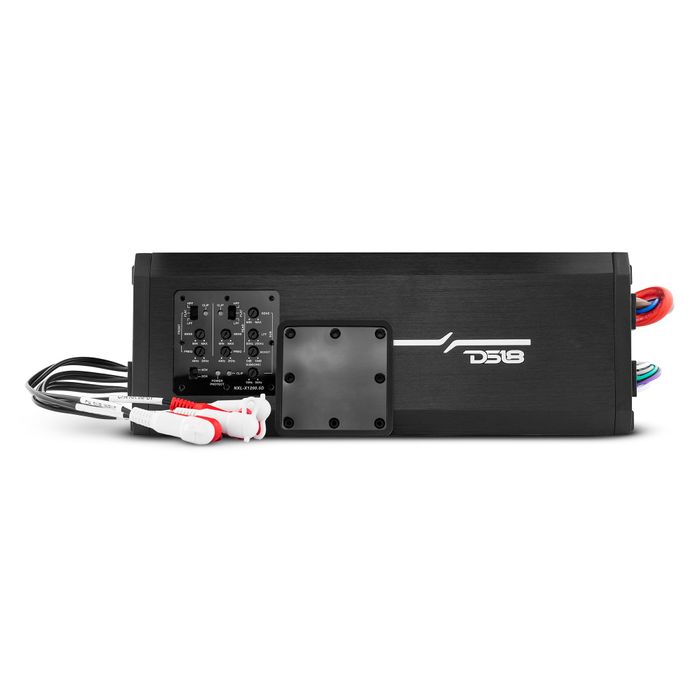

DS18 5-Channel, Full-Range, 4 x 150 @ 4Ω and 1 x 600 @ 2Ω Watts RMS, IP67 Waterproof Rating — NXL-X1200.5D

DS18

DS18 5-Channel, Full-Range, 4 x 150 @ 4Ω and 1 x 600 @ 2Ω Watts RMS, IP67 Waterproof Rating — NXL-X1200.5D

SKU DS1 NXL-X1200.5D

Price: $724.95

How our shipping works

Most items are prepared for shipment within 3–4 business days. Carrier delivery time is additional.

Some special-order items take longer; contact us for an estimate.

Your order is checked before it ships.

Details & specs

Description

  • Marine Full Range
  • 5 Channel
  • 4 x 150 Watts @ 4Ω
  • 1 x 600 Watts @ 2Ω
  • Built in Crossover ~ Class D
  • Water Resistant IP67

Model

NXL-X1200.5D

Specifications

  • Five-channel Class D full-range marine/powersports amplifier with IP67 water-resistant rating; not intended for submersion.
  • Rated output: 4 × 150 W RMS at 4 Ω and 1 × 600 W RMS at 2 Ω subwoofer; 2 × 400 W bridged at 4 Ω. Peak power: 2,800 W.
  • Frequency response: 10 Hz–250 Hz; THD <0.05%; signal-to-noise ratio >85 dB; low-level input 200 mV–5 V.
  • Selectable HPF/full/LPF on full-range channels and fixed LPF on sub channel; sub crossover 50–250 Hz, bass boost 0–18 dB at 42 Hz, infrasonic filter 10–55 Hz.
  • 2-/4-channel input selector with dedicated sub input; 4 AWG tinned OFC power input, dual 50 A fuses, marine-grade fuse holder and quick-connect power harness.
  • Dimensions: 12.67 × 4.4 × 1.77 in.
