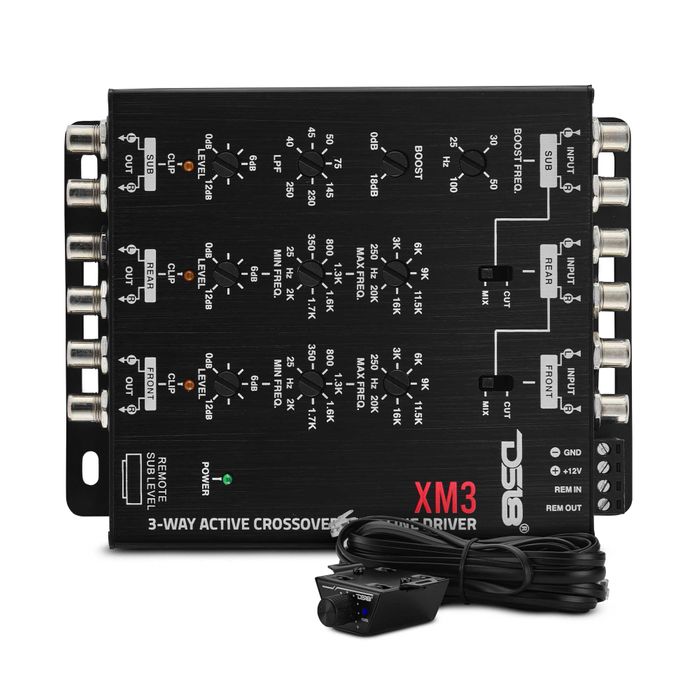

DS18 3-Way, Active Crossover, Sub-Level Control — XM3

DS18

DS18 3-Way, Active Crossover, Sub-Level Control — XM3

SKU DS1 XM3

Price: $99.95

How our shipping works

Most items are prepared for shipment within 3–4 business days. Carrier delivery time is additional.

Some special-order items take longer; contact us for an estimate.

Your order is checked before it ships.

Details & specs

DS18 XM3 is a 3-way active crossover and line driver with front, rear and subwoofer outputs.

Signal and crossover specifications

  • Selectable 1-, 2- or 3-way input modes; selectable mixed input.
  • Front/rear high-pass: 25 Hz–2 kHz; front/rear low-pass: 250 Hz–20 kHz; subwoofer low-pass: 40–250 Hz.
  • 12 dB/octave Butterworth crossover slope.
  • Preamp output up to 11 V; operating voltage: 9–15 V DC.
  • Signal-to-noise ratio: greater than 102 dB; THD: 0.01% at 1 kHz, 1 Vrms.
  • Adjustable bass boost: 0–18 dB, with frequency control from 25–100 Hz.
  • Tiffany RCA input/output connectors, delayed remote output, power/clip indicators and metal remote subwoofer level controller with clip indicator.
  • Dimensions: 6.25 × 5 × 1.2 inches.

Model

XM3
