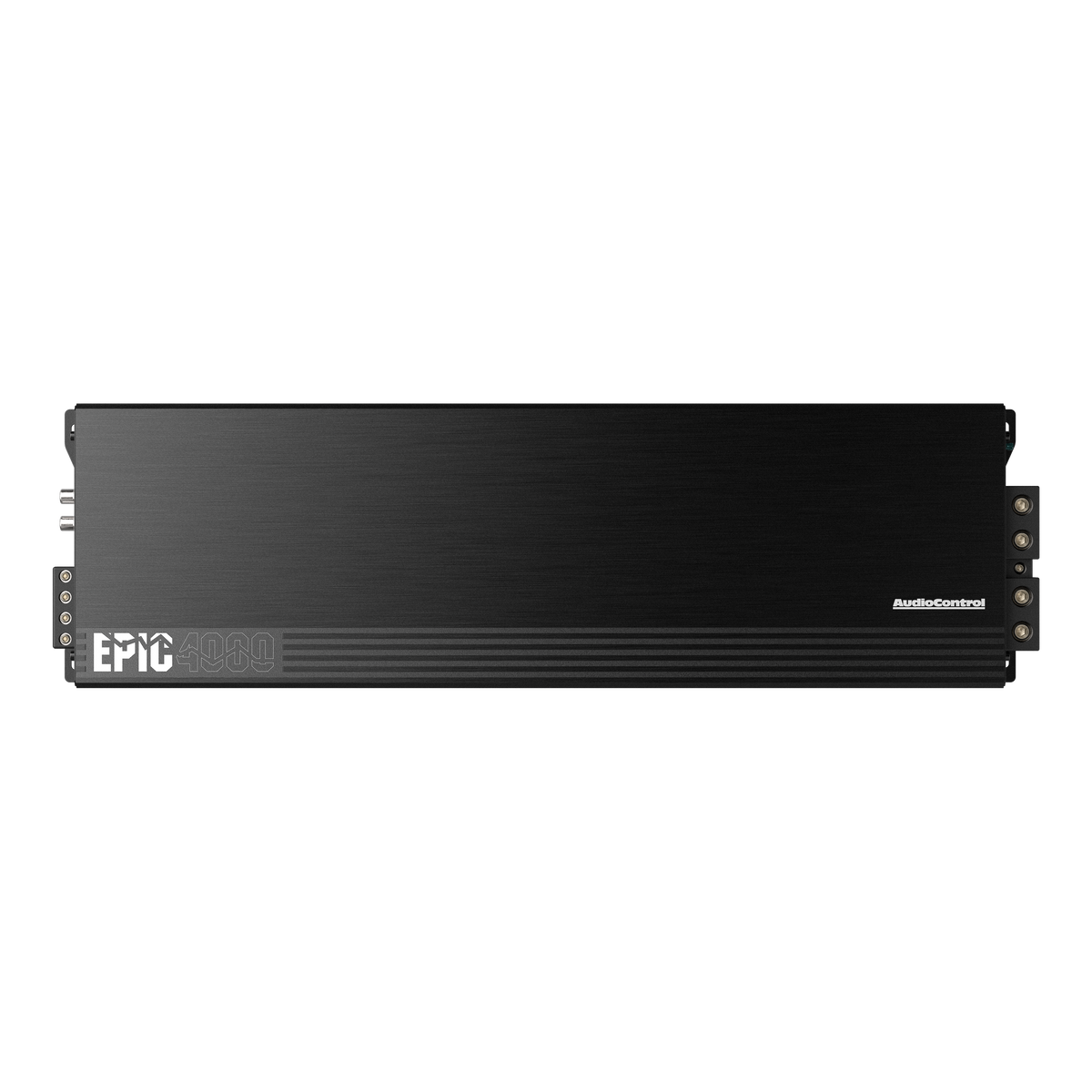

AudioControl EPIC Series Monoblock Amplifier, 4000W RMS
Model
EPIC4000
Specifications
| AMPLIFIER TOPOLOGY | Class D |
|---|---|
| POWER OUTPUT RMS | 1000 W @ 4 ohms / 2000 W @ 2 ohms / 4000 W @ 1 ohm |
| FREQUENCY RESPONSE (+/- 1 DB) | 10 Hz - 190 Hz |
| S/N RATIO | 104.8 dBa, Ref 1000 Watts @ 4 ohms |
| POWER / GROUND WIRE GAUGE | 0 AWG |
| SPEAKER TERMINAL WIRE GAUGE | 8 AWG |
| RECOMMENDED FUSE RATING | 200 Amp x 2 / 400 Amps x 1 |
| LOW PASS FILTER | 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz |
| SUBSONIC FILTER | 12 dB/octave Linkwitz-Riley, Off to 50 H |
| EPIC BOOST | 30 to 80 Hz, Gain: 0 to 12 dB |
| LINE-LEVEL INPUTS | 0.5 to 12 VRMS |
| INSTALL REQUIREMENT | Two 0-gauge power wires and two 0-gauge ground wires are required for this amplifier to function. |
| INSTALL REQUIREMENT | Each 0-gauge power wire must have a 200-amp fuse installed within 12 inches of its connection to the battery. |
| INSTALL REQUIREMENT | Use only high-quality 0-gauge OFC (oxygen-free copper) wire for all power and ground connections. |
| INSTALL REQUIREMENT | Do NOT mount the amplifier to subwoofer enclosures. |
