AudioControl

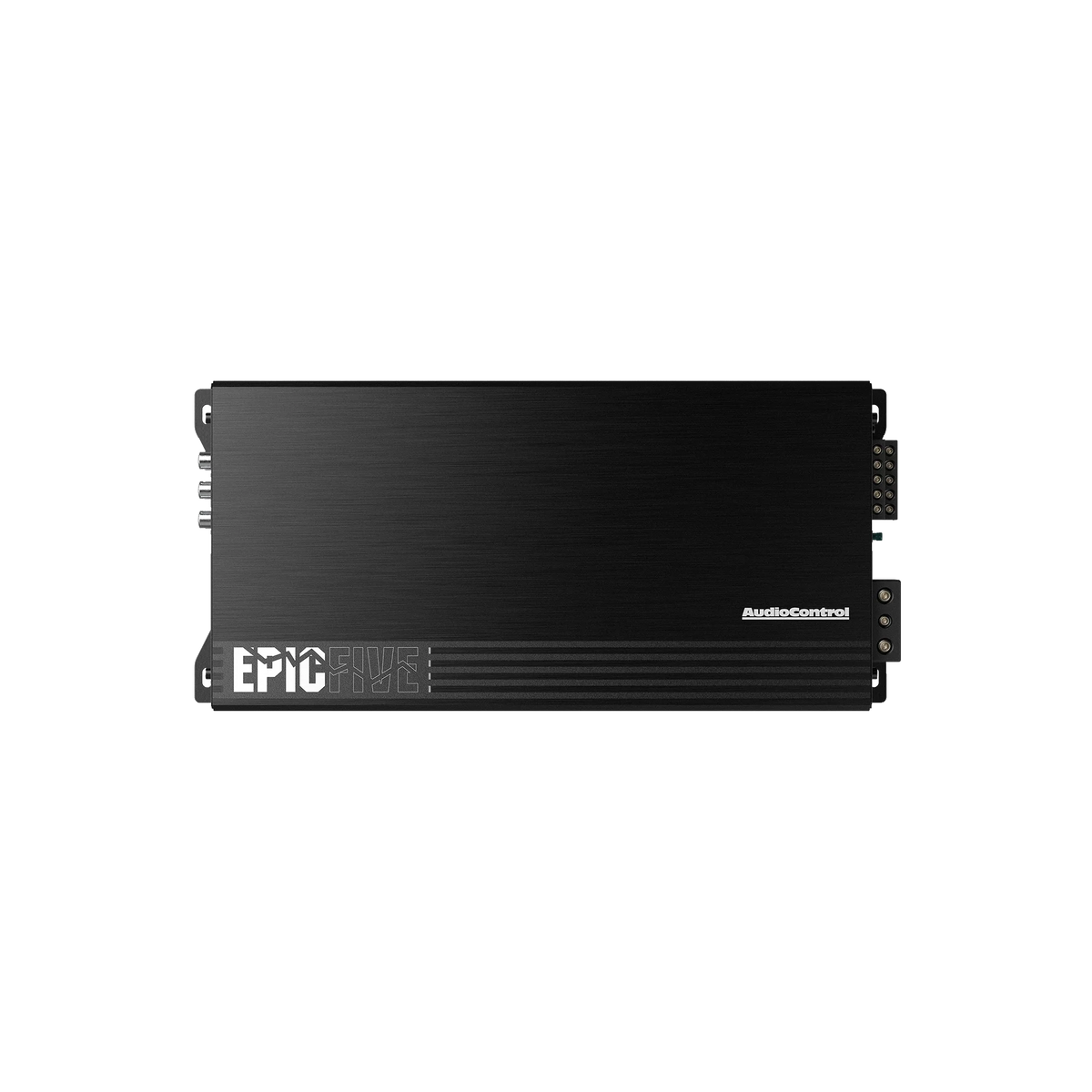

AudioControl EPIC 5-Channel Amplifier 150W x 4 + 300W @ 2Ω — EPICFIVE
AudioControl EPIC 5-Channel Amplifier 150W x 4 + 300W @ 2Ω — EPICFIVE
Regular price
$279.00 USD
Regular price
Sale price
$279.00 USD
Unit price
/
per
Couldn't load pickup availability
AudioControl EPIC 5-Channel Amplifier 150W x 4 + 300W @ 2Ω
Model
EPICFIVE
Specifications
| LINE LEVEL INPUTS | 500mV – 12V RMS |
|---|---|
| OUTPUT RMS @ 14.4V | 4x75W + 1 x 300W @ 4 Ω; 4x150W + 1x500W @ 2 Ω |
| OUTPUT RMS @ 14.4V | 1x700W @ 1 Ω (subwoofer); 2x300 W @ 4 Ω Bridged |
| FREQUENCY RESPONSE | 10 Hz – 24 kHz (Ch1/2/3/4); 12 Hz – 181 Hz (Ch5) |
| S/N RATIO | 92.1 dBa, Ref 75 Watts @ 4 ohms |
| POWER / GROUND WIRE GAUGE | 4 AWG |
| RECOMMENDED FUSE RATING | 150 Amps |
| HIGH PASS FILTER | 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz |
| LOW PASS FILTER | 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz |
| SUBSONIC FILTER | 12 dB/octave Linkwitz-Riley, Off to 50 Hz |
| EPIC BOOST | Frequency Center: 45 Hz, Gain: 0 to 12 dB |
| SPEAKER TERMINAL WIRE GAUGE | 8 AWG |
Shipping from Soundwaves
Most items are sourced after your order and ship from Soundwaves within 3–4 business days. Carrier delivery time is additional. Some special-order items take longer; contact us for an estimate. We receive and check your order at our shop before shipping it to you.
