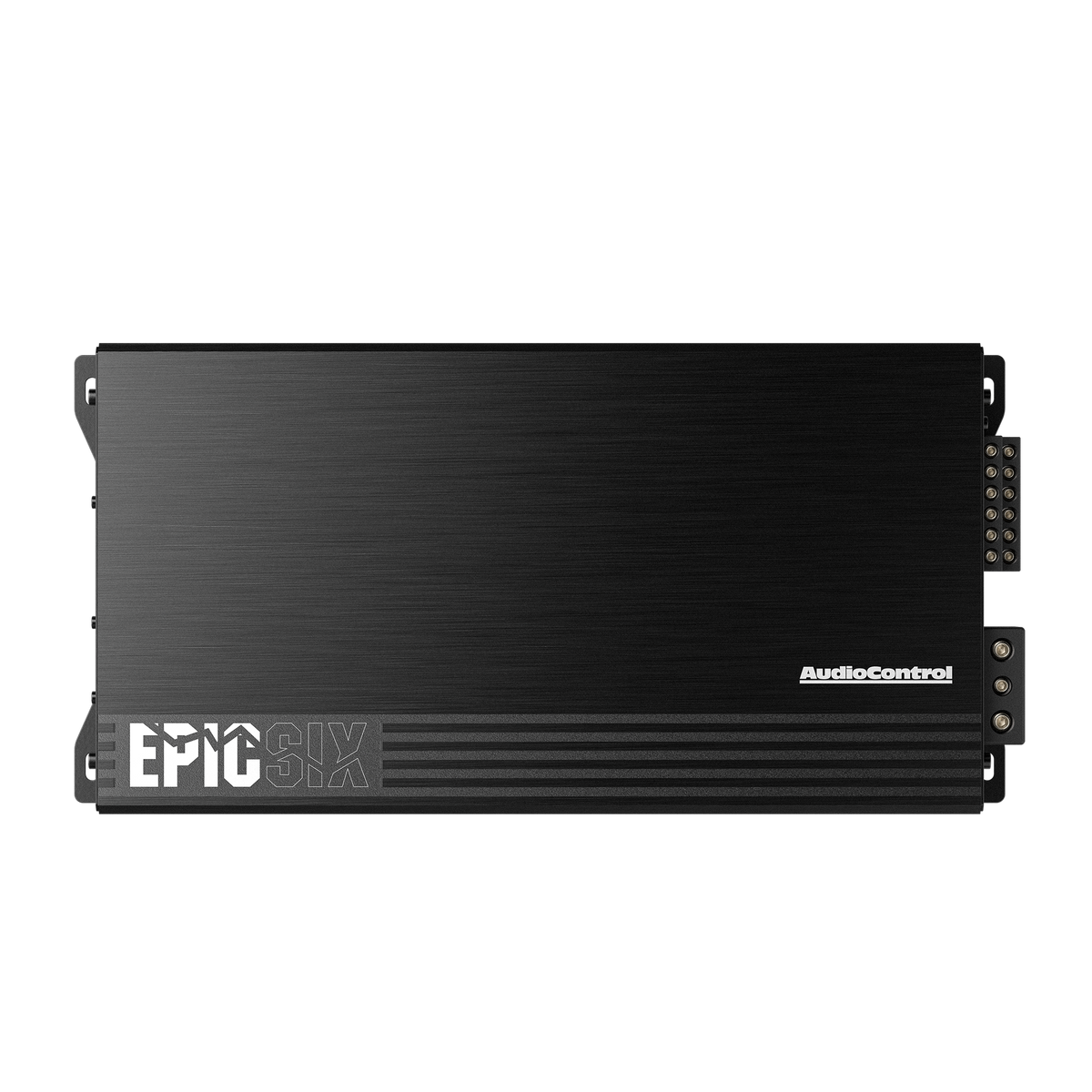

AudioControl EPIC Series 6-Channel Full Range 1200 Watt Amplifier
Model
EPICSIX
Specifications
| AMPLIFIER TOPOLOGY | Class D |
|---|---|
| POWER OUTPUT RMS (14.4V, <1% THD) | 6 x 100 W @ 4 ohms, 6 x 200 W @ 2 ohms, 2 x 400 W @ 4 ohms Bridged |
| FREQUENCY RESPONSE (+/- 3 DB) | 10 Hz - 22 kHz |
| S/N RATIO | 90.1 dBa, Ref 100 Watts @ 4 ohms |
| POWER / GROUND WIRE GAUGE | 4 AWG |
| RECOMMENDED FUSE RATING | 125 Amps |
| HIGH PASS FILTER | 12dB/octave Linkwitz-Riley, Off, 50 Hz to 5000 Hz |
| LOW PASS FILTER | 12dB/octave Linkwitz-Riley, Off, 50 Hz to 5000 Hz |
| LINE-LEVEL INPUTS | 500mV - 12V RMS |
| SPEAKER TERMINAL WIRE GAUGE | 10 AWG |
| CHASSIS DIMENSIONS (LXWXH) | 12.56" x 6.1" x 2.01" / 319 mm x 155 mm x 51 mm (not including connectors) |
