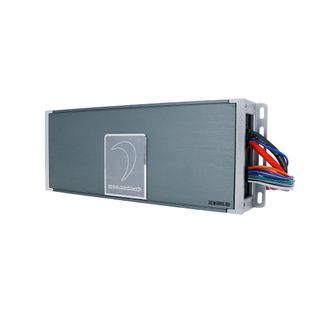

Diamond Audio 6-Ch DXM Series Full Range Class D Waterproof Amp — DXM1000.6D

Diamond Audio 6-Ch DXM Series Full Range Class D Waterproof Amp — DXM1000.6D

Specifications

IPX67-rated marine amplifiers with pristine Class D technology and Direct FET power.

The pinnacle of durability and superior sound.

• Power @ 2Ω: 150W RMS x 6
• Power @ 4Ω: 100W RMS x 6
• Power @ 4Ω Bridged: 340W RMS x 3CH
• Total Harmonic Distortion: <0.3%
• S/N Ratio (1W@4Ω): >-96dB
• Gain Range: 0.2v-10v
• Crossover Range: 40Hz-400Hz
• Frequency Range: 10Hz-33KHz
• Current Draw Full Power (Music): 105A (10.5A) AVG
• Fuse Rating: 50A
• Dimensions: 11.8”x4.3”x1.7” (298.6mm x 110mm x 44.0mm)
• Power & Protection Led Light Status Indicator
• Short circuit, thermal, and voltage protection
• Selectable X-Over: LPF/FULL/HPF
• Selectable Input Modes: 2CH/6CH
• IPX67 Rated
• Remote Bass Knob Included

Features and fitment

Model

DXM1000.6D
