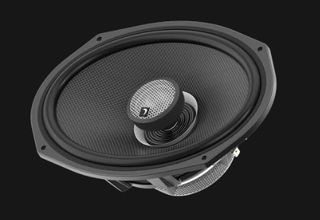

Diamond Audio 6"x9" 2-Way High Output Marine Speaker (4Ω) — HXM69F4BK

Diamond Audio 6"x9" 2-Way High Output Marine Speaker (4Ω) — HXM69F4BK

Specifications

The HXMFBK Series redefines high-output performance by blending legendary engineering with advanced carbon fiber cones. Experience deeper bass and crisp, impactful highs designed to dominate even the loudest outdoor environments.

Engineered for the extreme, the HXMFBK Series features fiber-reinforced composite baskets and oversized titanium tweeters. Upgrade your marine or motorsports adventure with class-leading acoustics built to withstand the elements flawlessly.

SPEAKER SIZE - 6X9"
SPEAKER TYPE - HORN LOADED CO AXIAL
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - TITANIUM
BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 94
RE (Ω) [SERIES]: 2
QMS: 3.759
QES: 0.471
QTS: 0.419
FS (HZ): 69
VAS (L): 23.014
CMS (MM/N): 0.343
MMS (G): 15.599
SD (M2): 217.28
BL (T*M): 5.348
XMAX (MM): 3.25
POWER HANDLING RMS: 150
POWER HANDLING MAX: 450
MOUNTING DEPTH: IN.(MM):3.10" (78.81MM)
CUT OUT DIAMETER IN.(MM):8.51" (216.03MM)
OVER ALL DIAMETER IN.(MM):9.46" (240.29MM)
OVER ALL HEIGHT IN.(MM):3.58" (90.81MM)

Features and fitment

Model

HXM69F4BK
