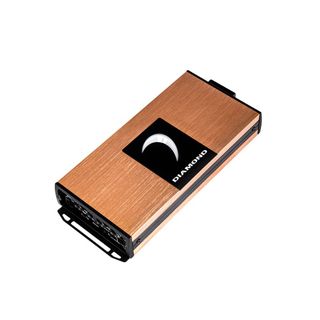

Diamond Audio MICROV2 Series 4-Ch Full Range Class D Amplifier — MICRO4V2

Diamond Audio MICROV2 Series 4-Ch Full Range Class D Amplifier — MICRO4V2

Specifications

Big power, small package.

High-density aluminum alloy chassis fits any setup.

• 150W x 4 @ 2Ω
• 80W x 4 @ 4Ω
• 300W x 2 @ 4Ω Bridged
• Input Sensitivity: 0.2-10 Volt
• Crossover Filter : 40-400Hz, 12dB Per Octave Slope
• Frequency Response: 10-33KHz
• Selectable REM / VOX / DC Turn On Modes
• Selectable X-Over: LPF / FLAT / HPF
• Selectable 2CH / 4CH Input Modes
• Dimensions: 9.7” x 4.0” x 1.46” / 230.5 x 103 x 37.2 mm
• Disconnected RCA Input & Speaker Output Harness Kits Included

Features and fitment

Model

MICRO4V2
