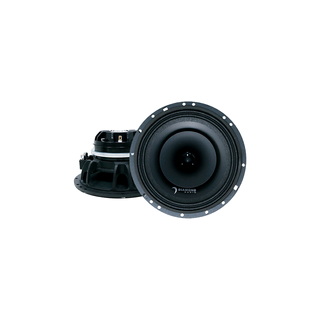

Diamond Audio MP Series 6.5" 2-Way Full-Range Coaxial Speaker (4Ω) — MP654

Diamond Audio MP Series 6.5" 2-Way Full-Range Coaxial Speaker (4Ω) — MP654

Specifications

Experience the ultimate high-output sound with Diamond Audio's MP Series. Engineered for maximum efficiency, these premium speakers utilize horn-style tweeters to effortlessly cut through wind and engine noise.

Crafted with heavy-duty cast aluminum baskets and replaceable tweeter diaphragms, the MP Series guarantees uncompromising durability. It’s the ultimate high-fidelity audio upgrade for your motorcycle, boat, or recreational vehicle.

THIELE/SMALL PARAMETERS

Parameter

• Power: 150W RMS/300w MAX
• SPL(dB) MidBass: 92.7
• SPL(dB) Tweeter: 107
• Re(Ω): 3.2
• Qms: 10.73
• Qes: 0.47
• Qts: 0.45
• Fs(Hz): 103.3
• Vas(L): 6.6
• Cms(mm/N): 0.24
• Mms(g): 90.7
• Sd(cm²): 138.9
• BL(T*M): 6.5
• Xmax(mm): 1.0
• Hi-pass Filter: 12dB 2nd Order Crossover

DIMENSIONS

• Diameter: 6.5" (165.5mm)
• Mounting Diameter: 5.73" (145.5mm)
• Mounting Depth: 3.33" (91.6)
• Total Depth: 3.88" (98.6mm)
• Magnet Diameter: 3.94" (100mm)

FEATURES

• NEO Magnet
• Heavy Duty Steel Basket
• Mid Driver: 1.5" Single Layer High Temp 4Ω Voice Coil
• Tweeter: 1.0" 8 Ohm - Single Layer High Temp Voice Coil
• Frequency Response: 110Hz -18Khz
• High Sensitivity 101dB 1W/1M
• 12dB 2nd Order Filter Crossover

Features and fitment

Model

MP654
