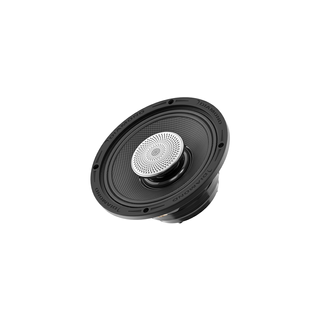

Diamond Audio 6.5" 2-Way Coaxial Shallow Mount NEO Speakers (4Ω) — MS652NEO4S

Diamond Audio 6.5" 2-Way Coaxial Shallow Mount NEO Speakers (4Ω) — MS652NEO4S

Specifications

Engineered for space-limited environments, the MS NEO series delivers massive high-output sound. Its innovative shallow-mount design and neodymium efficiency ensure a premium, crystal-clear audio experience without compromising on space.

Conquer road noise and the elements with the rugged MS NEO series. These water-resistant, high-performance speakers provide a seamless professional upgrade for your motorcycle, car, or powersports vehicle in any condition.

• SPEAKER SIZE - 6.5"
• SPEAKER TYPE - HORN LOADED CO AXIAL
• BI-AMPABLE YES
• OHMS (PER COIL) - 2
• NUMBER OF VOICE COILS - DUAL
• FIELD SERVICABLE VOICE COIL - YES
• CONE MATERIAL - CARBON FIBER
• DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE
• NAPHTHALATE
• BASKET MATERIAL - CAST ALUMINIUM
• MAGNET TYPE - NEODYMIUM
• SURROUND MATERIAL - RUBBER
• WATER RESISTANCE -
• VOICE COIL DIAMETER - INCH (MM) - 2"
• THIELE/SMALL PARAMETERS
• SENSITIVITY (1W/1M): 93
• RE (Ω) [SERIES]: 3.2
• QMS: 10.357
• QES: 0.67
• QTS: 0.629
• FS (HZ): 151
• VAS (L): 2.756
• CMS (MM/N): 0.094
• MMS (G): 11.728
• SD (M2): 143.14
• BL (T*M): 7.289
• XMAX (MM): 1.2
• POWER HANDLING RMS: 200W
• POWER HANDLING MAX: 400W
• MOUNTING DEPTH: IN.(MM):2.74"" (69.50MM)
• CUT OUT DIAMETER IN.(MM):5.63"" (143MM)
• OVER ALL DIAMETER IN.(MM):6.29"" (159.68MM)
• OVER ALL HEIGHT IN.(MM):3.38"" (85.9MM)

Features and fitment

Model

MS652NEO4S
