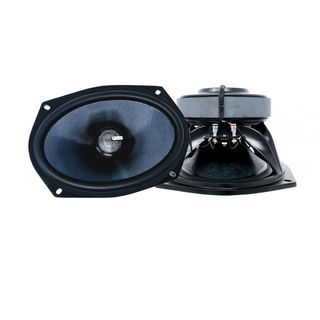

Diamond Audio 6"x9" 2-Way High-Output Coaxsub (2Ω) — MS692CX2

Diamond Audio 6"x9" 2-Way High-Output Coaxsub (2Ω) — MS692CX2

Specifications

Forget weak outdoor audio. This extreme-duty series packs a massive punch, delivering rich, thumping lows and razor-sharp vocals that effortlessly slice through wind, waves, and engine roar.

Rain, mud, or saltwater—nothing stops your playlist. Built with heavy-duty marine-grade armor, these high-output components guarantee an ultra-premium, full-range acoustic experience in any extreme environment.

• Power Handling Watts (RMS/Peak): 130W/520W
• Nominal Impedance (Ω): 2Ω
• Frequency Response (Hz): 45Hz-23kHz
• Voice Coil: 1.66" (42.2mm)
• Fs - Free Air Resonance (Hz): 46Hz
• Qts: 0.51
• Vas ft³ (Liter): 0.794" (22.5L)
• Sensitivity (1W/1M): 87.6db
• Sensitivity( 2.83V/1M): 94.6db
• Xmax (mm): 0.315" (8mm)
• Mounting Depth: 3.818” (97mm)
• Mounting Diameter: 5.98”x8.85” (152mmX225mm)

Features and fitment

Model

MS692CX2
