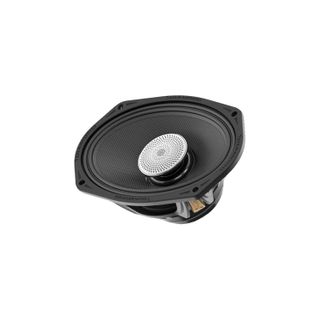

Diamond Audio 6"x9" 2-Way Coaxial NEO Speakers (2Ω) — MS692NEO2

Diamond Audio 6"x9" 2-Way Coaxial NEO Speakers (2Ω) — MS692NEO2

Specifications

Engineered for space-limited environments, the MS NEO series delivers massive high-output sound. Its innovative shallow-mount design and neodymium efficiency ensure a premium, crystal-clear audio experience without compromising on space.

Conquer road noise and the elements with the rugged MS NEO series. These water-resistant, high-performance speakers provide a seamless professional upgrade for your motorcycle, car, or powersports vehicle in any condition.

• SPEAKER SIZE - 6"x 9"
• SPEAKER TYPE - HORN LOADED CO AXIAL
• BI-AMPABLE YES
• OHMS (PER COIL) - 2Ω
• NUMBER OF VOICE COILS - DUAL
• FIELD SERVICABLE VOICE COIL - YES
• CONE MATERIAL - CARBON FIBER
• DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE
• NAPHTHALATE
• BASKET MATERIAL - CAST ALUMINIUM
• MAGNET TYPE - NEODYMIUM
• SURROUND MATERIAL - RUBBER
• WATER RESISTANCE -
• VOICE COIL DIAMETER - INCH (MM) - 2"
• THIELE/SMALL PARAMETERS
• SENSITIVITY (1W/1M): 94
• RE (Ω) [SERIES]: 3.2
• QMS: 7.368
• QES: 0.597
• QTS: 0.552
• FS (HZ): 104
• VAS (L): 9
• CMS (MM/N): 0.148
• MMS (G): 15.6
• SD (M2): 206.84
• BL (T*M): 7.418
• XMAX (MM): 1.2
• POWER HANDLING RMS: 200W
• POWER HANDLING MAX: 400W
• MOUNTING DEPTH: 3.74" (95mm)
• CUT OUT DIAMETER: 8.58 X 5.75 (218mmn X 146mm)
• OVER ALL DIAMETER: 9.19 X 6.38 (233.5mm X 162mm)
• OVER ALL HEIGHT: 4.08" (103.7mm)

Features and fitment

Model

MS692NEO2
