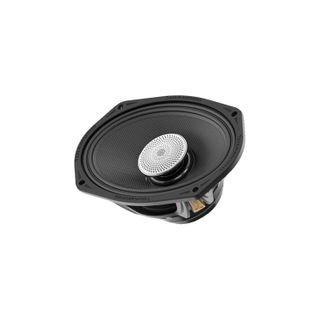

Diamond Audio 6"x9" 2-Way Coaxial NEO Speakers (4Ω) — MS692NEO4

Diamond Audio 6"x9" 2-Way Coaxial NEO Speakers (4Ω) — MS692NEO4

Specifications

Engineered for space-limited environments, the MS NEO series delivers massive high-output sound. Its innovative shallow-mount design and neodymium efficiency ensure a premium, crystal-clear audio experience without compromising on space.

Conquer road noise and the elements with the rugged MS NEO series. These water-resistant, high-performance speakers provide a seamless professional upgrade for your motorcycle, car, or powersports vehicle in any condition.

• SPEAKER SIZE - 6"x 9"
• SPEAKER TYPE - HORN LOADED CO AXIAL
• BI-AMPABLE YES
• OHMS (PER COIL) - 4
• NUMBER OF VOICE COILS - DUAL
• FIELD SERVICABLE VOICE COIL - YES
• CONE MATERIAL - CARBON FIBER
• DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE
• NAPHTHALATE
• BASKET MATERIAL - CAST ALUMINIUM
• MAGNET TYPE - NEODYMIUM
• SURROUND MATERIAL - RUBBER
• WATER RESISTANCE
• VOICE COIL DIAMETER - INCH (MM) - 2"
• THIELE/SMALL PARAMETERS
• SENSITIVITY (1W/1M): 94
• RE (Ω) [SERIES]: 3.2
• QMS: 7.368
• QES: 0.597
• QTS: 0.552
• FS (HZ): 104
• VAS (L): 9
• CMS (MM/N): 0.148
• MMS (G): 15.6
• SD (M2): 206.84
• BL (T*M): 7.418
• XMAX (MM): 1.2
• POWER HANDLING RMS: 200
• POWER HANDLING MAX: 400
• MOUNTING DEPTH: IN.(MM):3.74" (95mm)
• CUT OUT DIAMETER IN.(MM): 8.58 X 5.75(218mmn X 146mm)
• OVER ALL DIAMETER IN.(MM): 9.19 X 6.38(233.5mm X 162mm)
• OVER ALL HEIGHT IN.(MM):4.08" (103.7MM)

Features and fitment

Model

MS692NEO4
