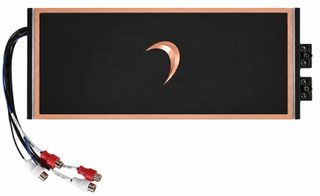

Diamond Audio DSP Amplifier Mono Class D 2000w RMS — NEO20001DSP

Description

• 1200w x 1 @ 4Ω
• 1600w X 1 @ 2Ω
• 2000w X 1 @ 1Ω
• Full DSP Integration
• 31 Band Parametric EQ Per Channel
• Crossovers
• Time Delay
• Channel Linking
• Pc Or Android Programming
• Up To 20v Signal Inputs (High/Low Level 20v-0.4v)
• Selectable On-Board Load Resistors 10Ω, 20Ω,60Ω, 20kΩ
• Ev Friendly Voltage Compatibility (8-17v)
• Marine Ready, Water-Resistant Chassis
• Staggered RCA Connections For Clean Installations
• High Current Quick Connect Power Block
• NEODRC1 Diamond Remote Commander Compatable (Sold Seperatly)
• 2 RCA DSP Preamp Outputs For System Expansion
• Dimensions (inches): 11.71 x 4.07 x 1.37

Specifications

• Output Power Rating:
  1200W x 1 @ 4Ω
  1600W x 1 @ 2Ω
  2000W x 1 @ 1Ω
• Frequency Response: 10Hz - 20kHz
• Input Sensitivity: 0.04-20V
• Signal to Noise Ratio: 95dB
• THD & Noise: ≤0.03%
• Dimensions(L×H×W): 297.5 X 103.3 X 35 mm/ 11.71" X 4.07" X 1.38"
• Net Weight: 1.51kg / 3.33lbs

Features and fitment

• Full 4CH DSP integration: 2CH internal, 2CH output. 31 band parametric EQS per channel, crossovers, time delay, channel linking, PC or Android programming for advanced tuning and much more
• Easy OEM integration features:
  • Up to 20V signal inputs (High/Low level 20V – 0.4V)
  • Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
  • EV friendly voltage compatibility (8V – 17V)
• Bluetooth Audio streaming direct to amplifier

• Control via IOS or Android App (coming soon)
• Marine ready, water-resistant chassis
• Staggered RCA connections for clean installations
• High-current quick-connect power block
• NeoDRC1 Diamond Remote Commander compatible (sold separately)
• 2 RCA preamp outputs for system expansion
• Ultra-low distortion (0.05% THD)

• Up to 20V signal inputs (High/Low level 20V – 0.4V)
• Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
• EV friendly voltage compatibility (8V – 17V)

Model

NEO20001DSP
